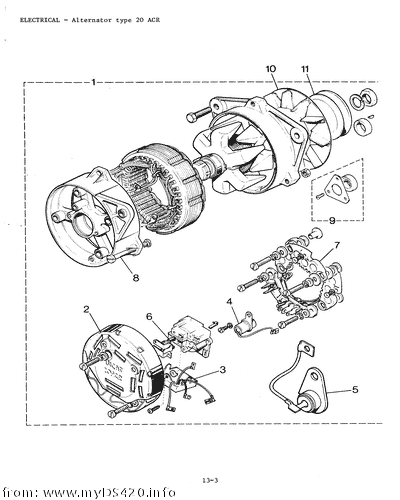

The alternator type 20ACR was fitted from April 1972 (see previous page for details) until engine 7M3577, This engine was for car 1M3198BW, production date 01/01/76. This alternator has the functionality of the Lucas 4TR regulator and the Lucas 3AW warning light relais built-in. The oldest wiring diagram on this website does not show these two components.
