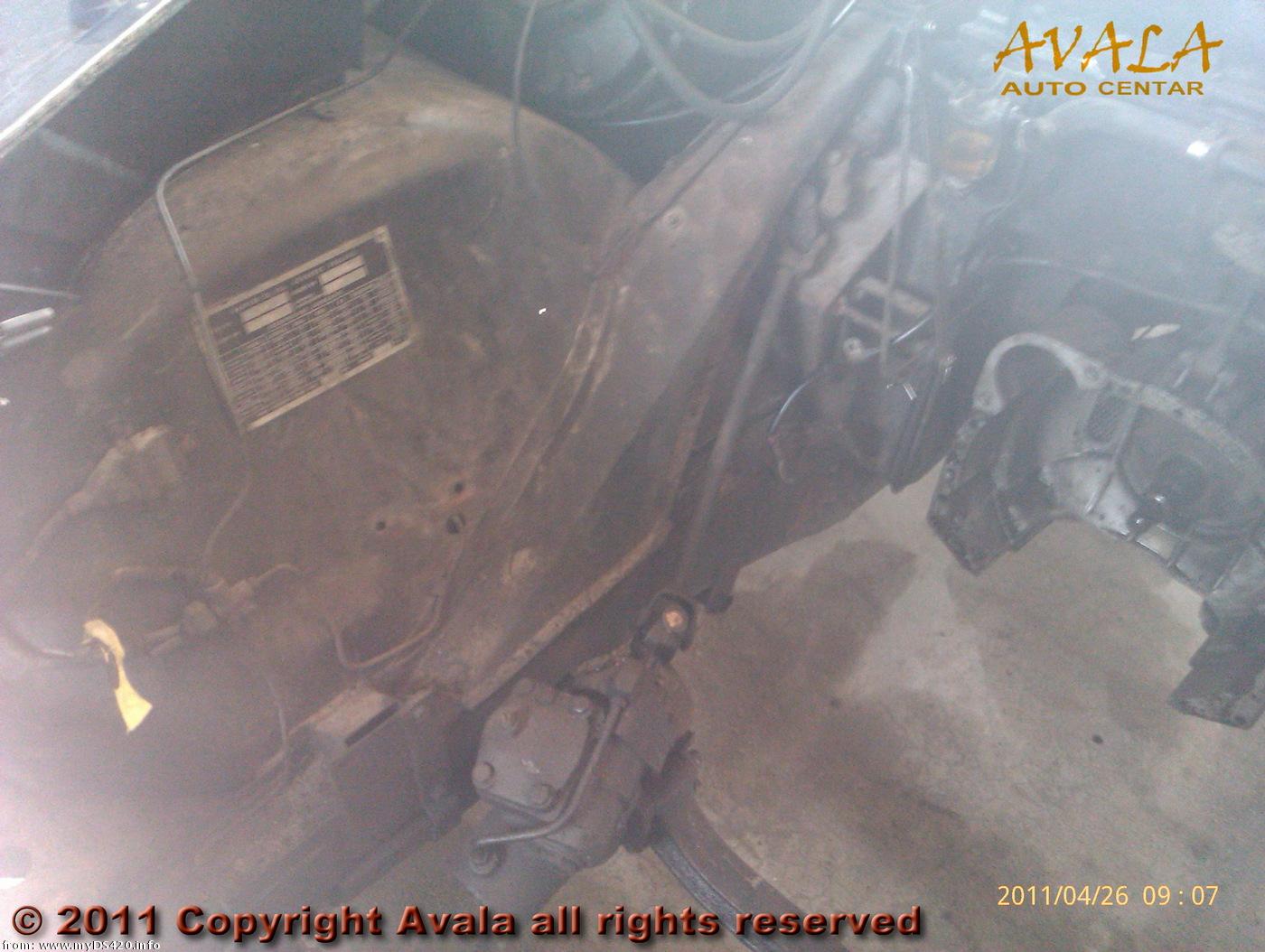

Looking down into engine bay onto the right wheel well. Engine removed. Steering column and steering box visible. To the left (to the right of the yellow tape) is the pressure sensor for the brake light in the T-junction where the hydraulics for front brakes and rear brakes split up. Above that is the flat connector with the electric cabling (5 wires) coming from the dashboard.
