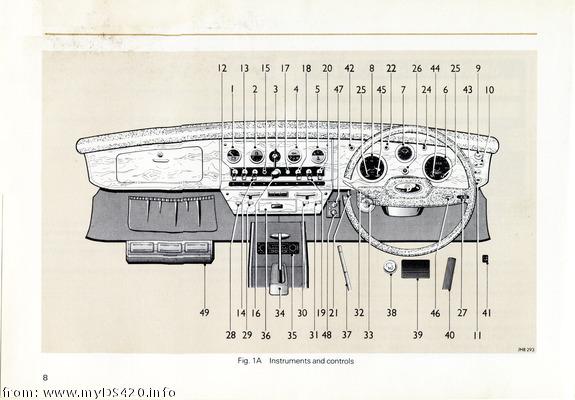

The keys to this drawing are on the next page.
Later versions of this "AKM8090 Edition 2" handbook were accompanied by a separate supplement that contained a replacement page for the page shown here. This replacement page showed a modification in the items 15, 17, 26 and 42/43. See the replacement page here.
